Installation guide
LEXUS / LAND CRUISER LX470 DUal battery box
IMPORTANT: This installation requires modification of the vehicle - you will need to relocate components. Do not attempt this if you do not have tools, equipment and know how to do this!
TOOLS:
You will need the following tools:
Wrench and Socket set (Handy to keep in the back of your Lexus)
Nutsert tool with nutserts - Needed to relocate components
Step drill - Needed to drill the holes for the nutsert

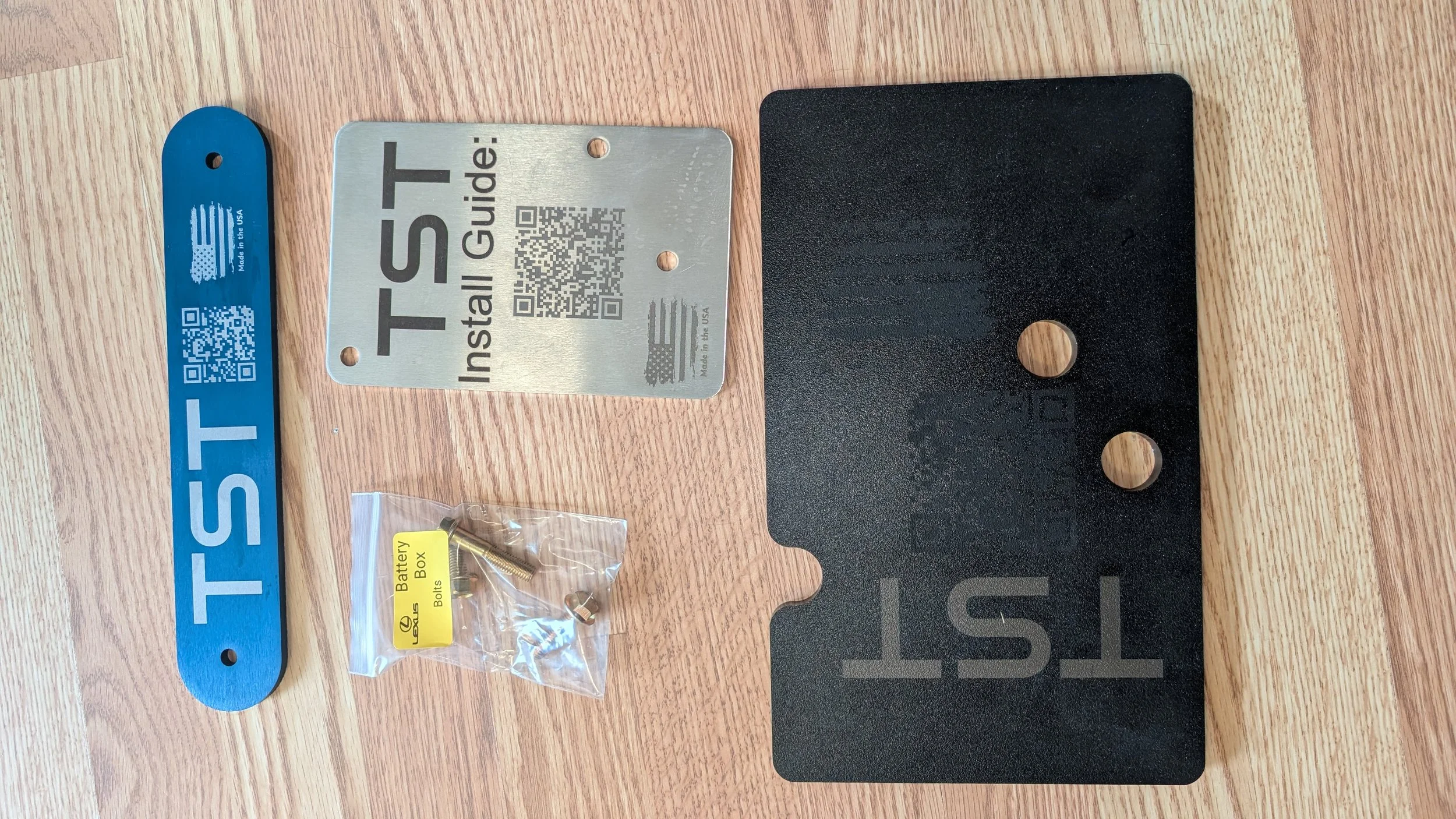

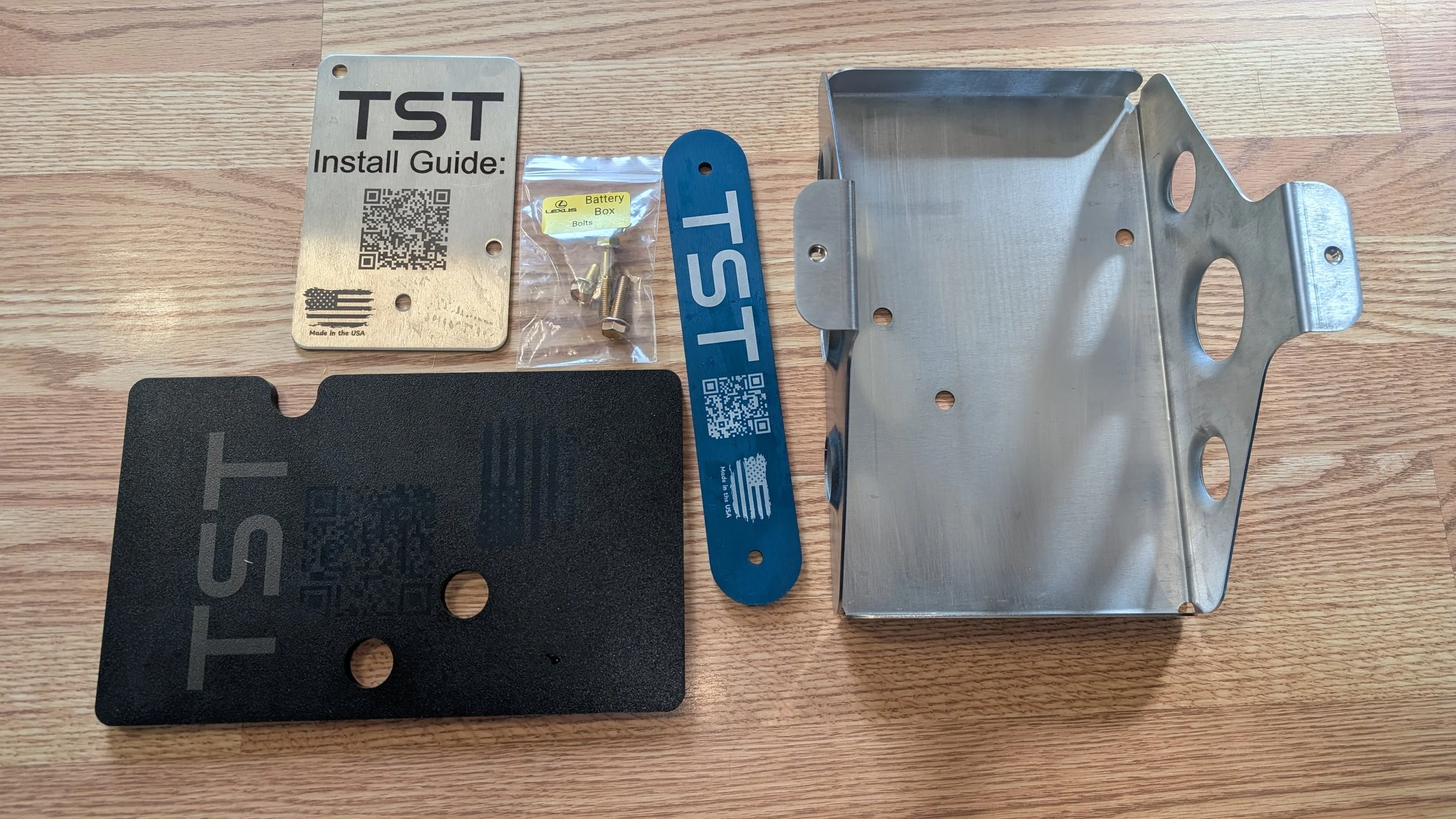

This kit contains:
Battery Box
Battery tie down strap
Doubler plate
12mm Thick spacer
20mm Thick spacer
M8 X 16 Bolt
M8 X 30 Bolt
M8 X 45 Bolt
M6 X 70 Bolt QTY2 of
@TheSHOP392
Install
@TheShop392 installed one of our prototype battery boxes - Lots of details with this installation

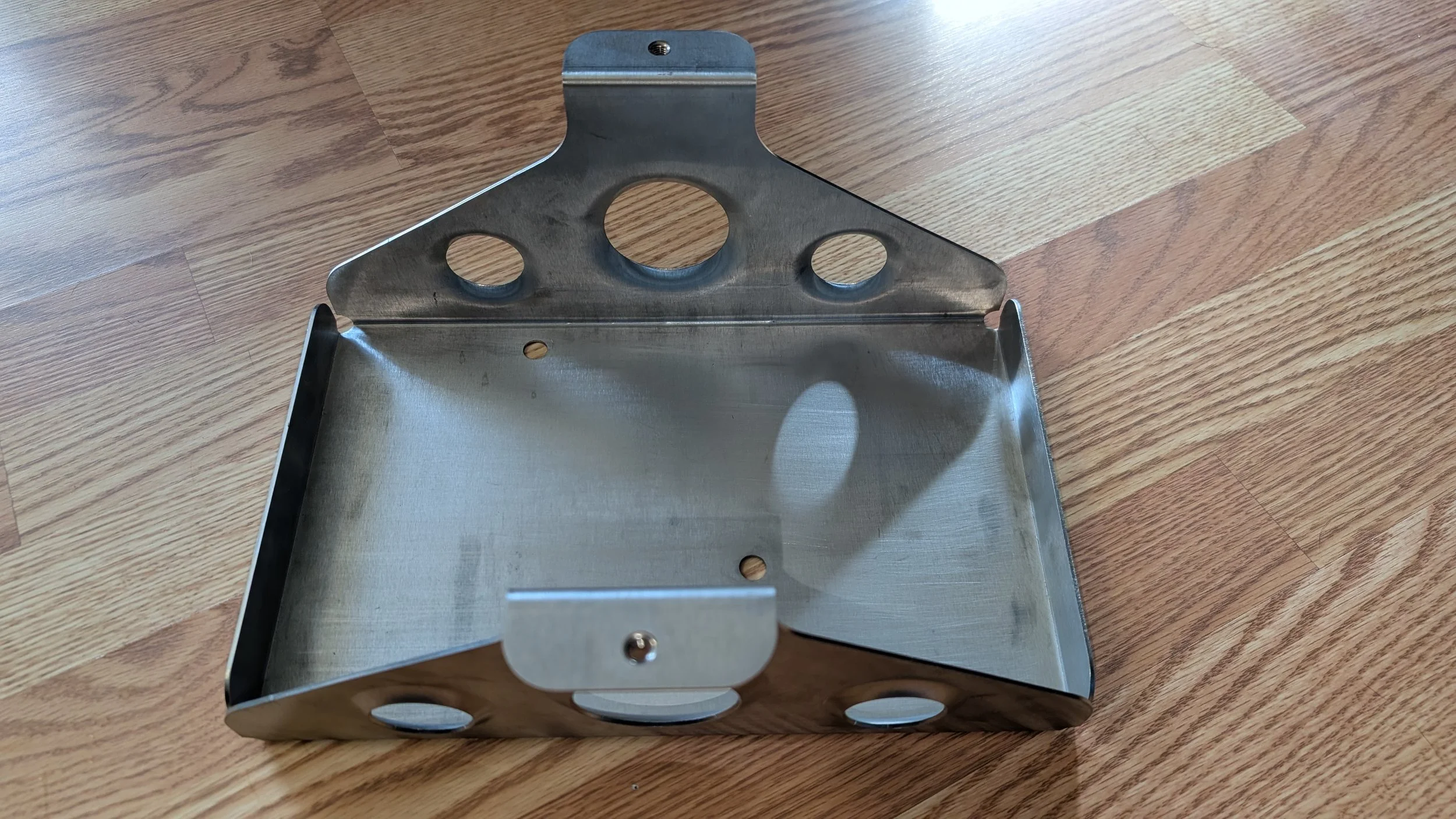

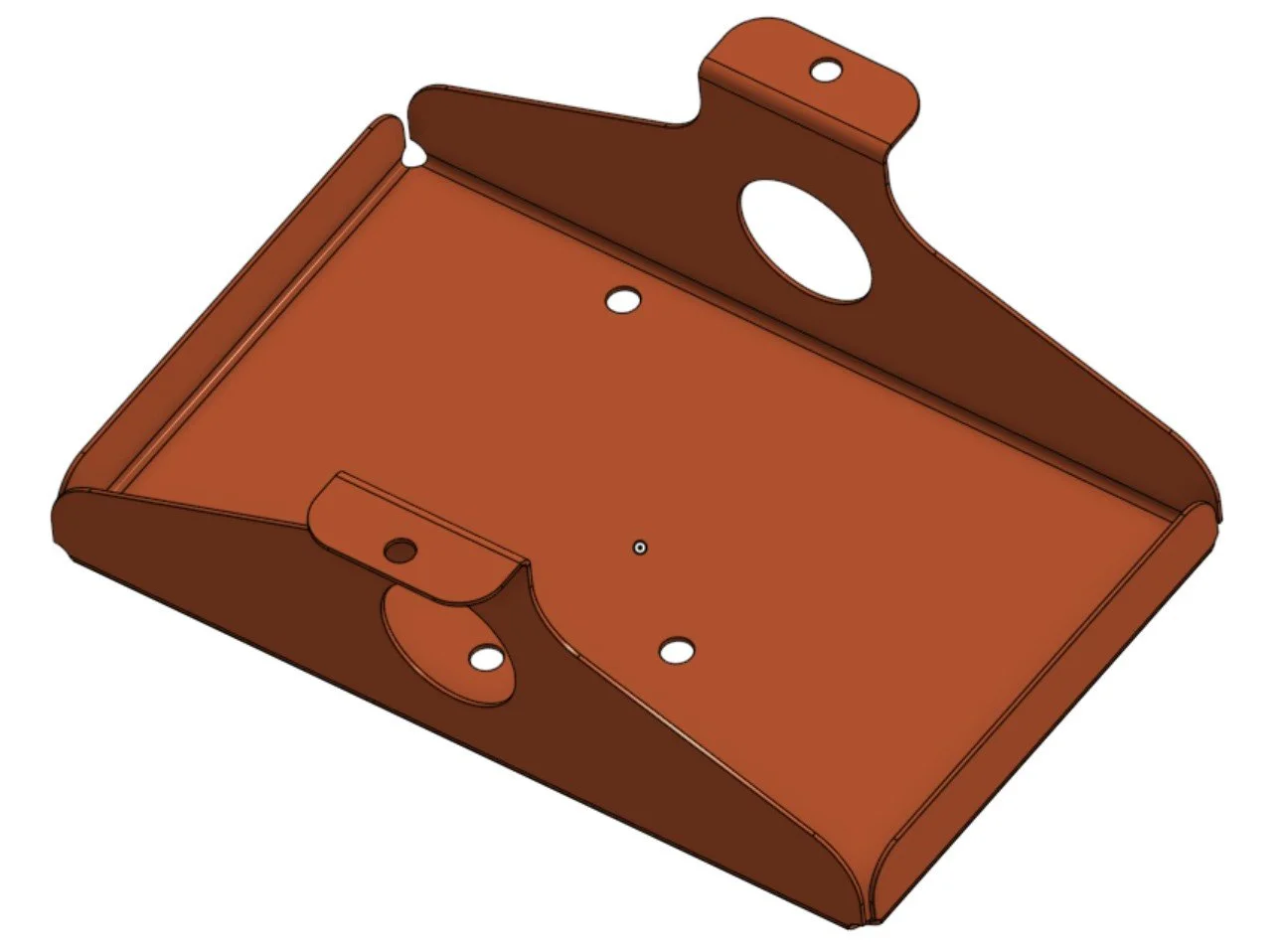

Battery Box
Battery Box Tie Down

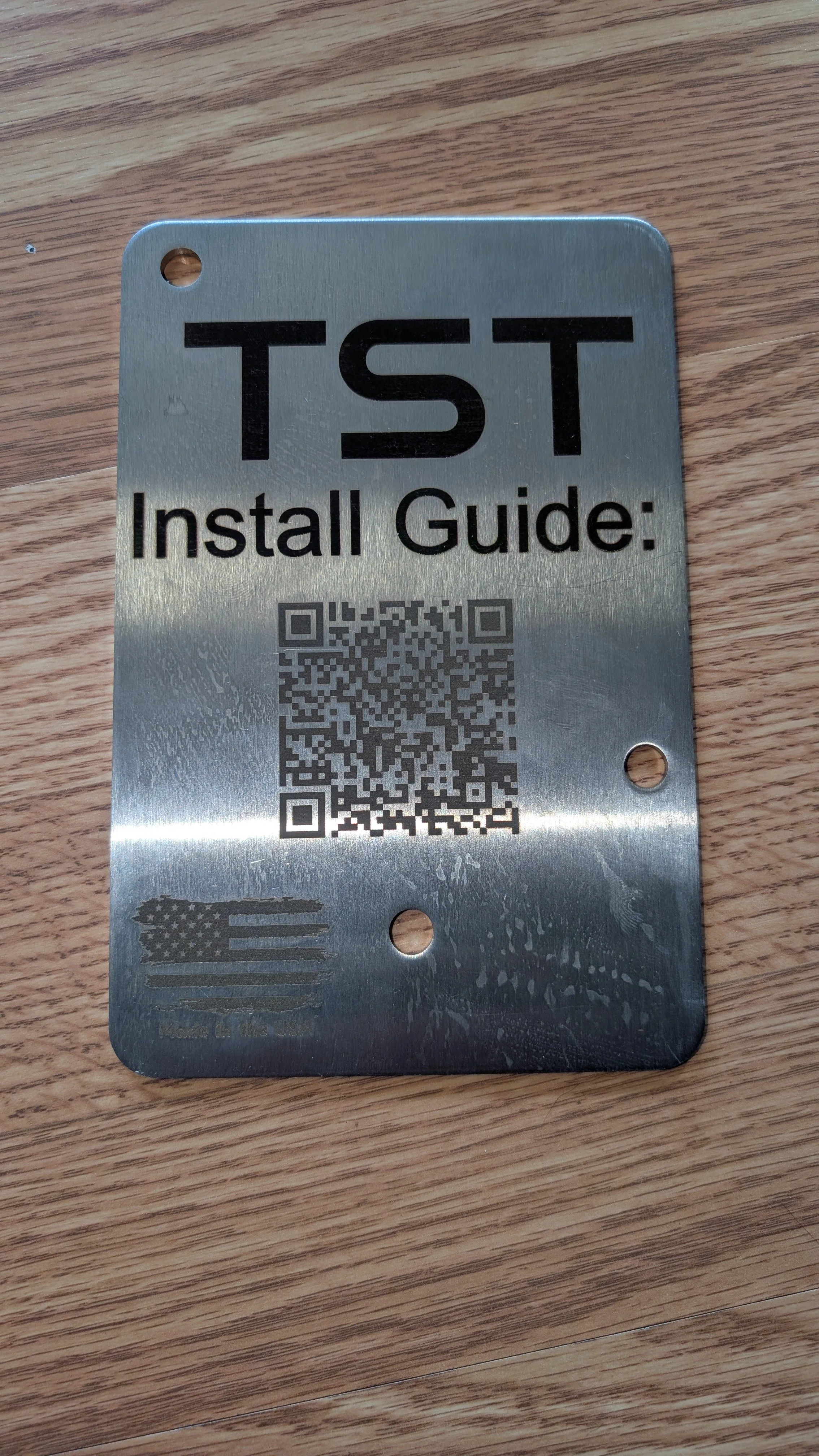

Doubler plate

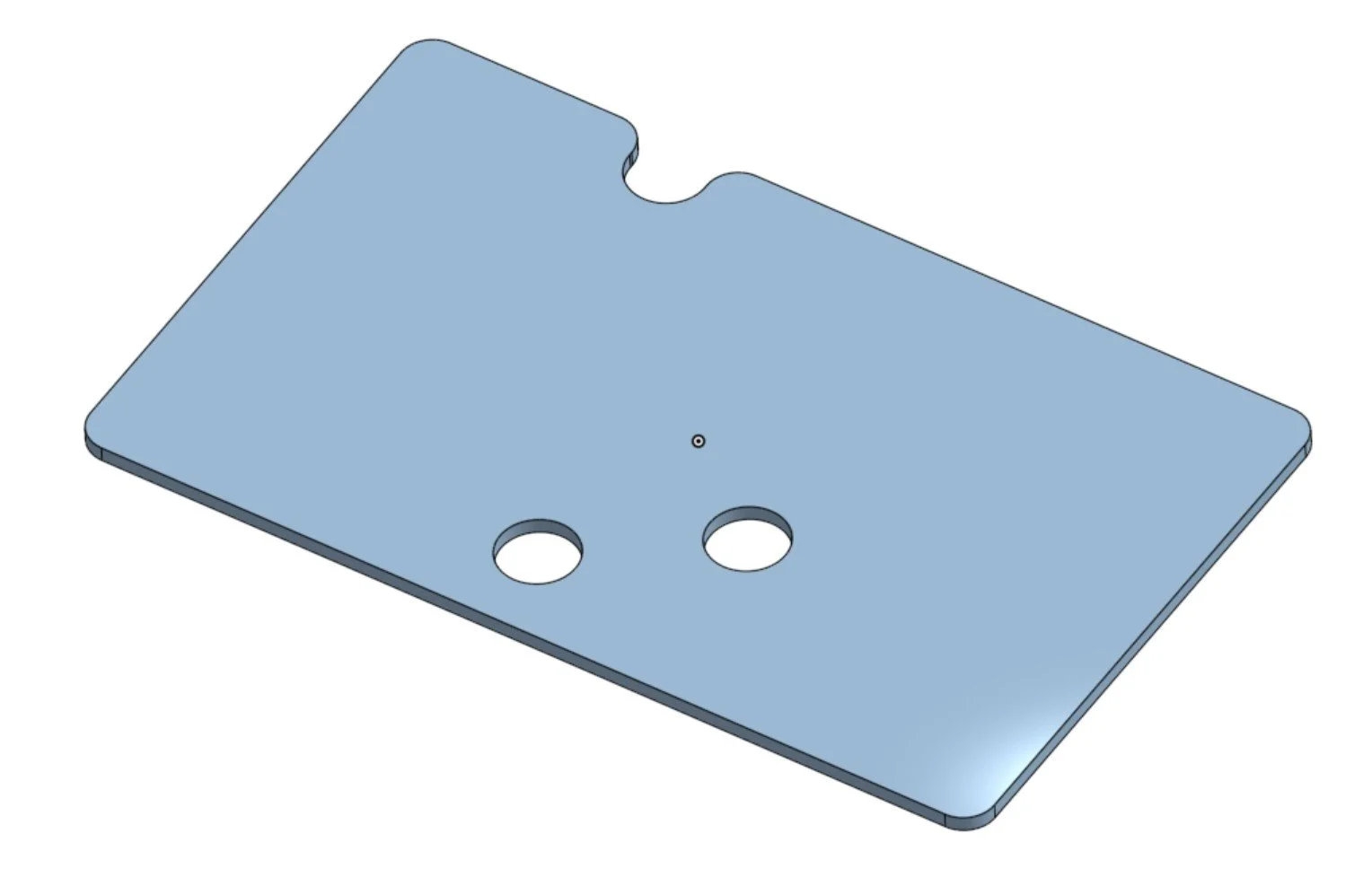

Battery Box Liner

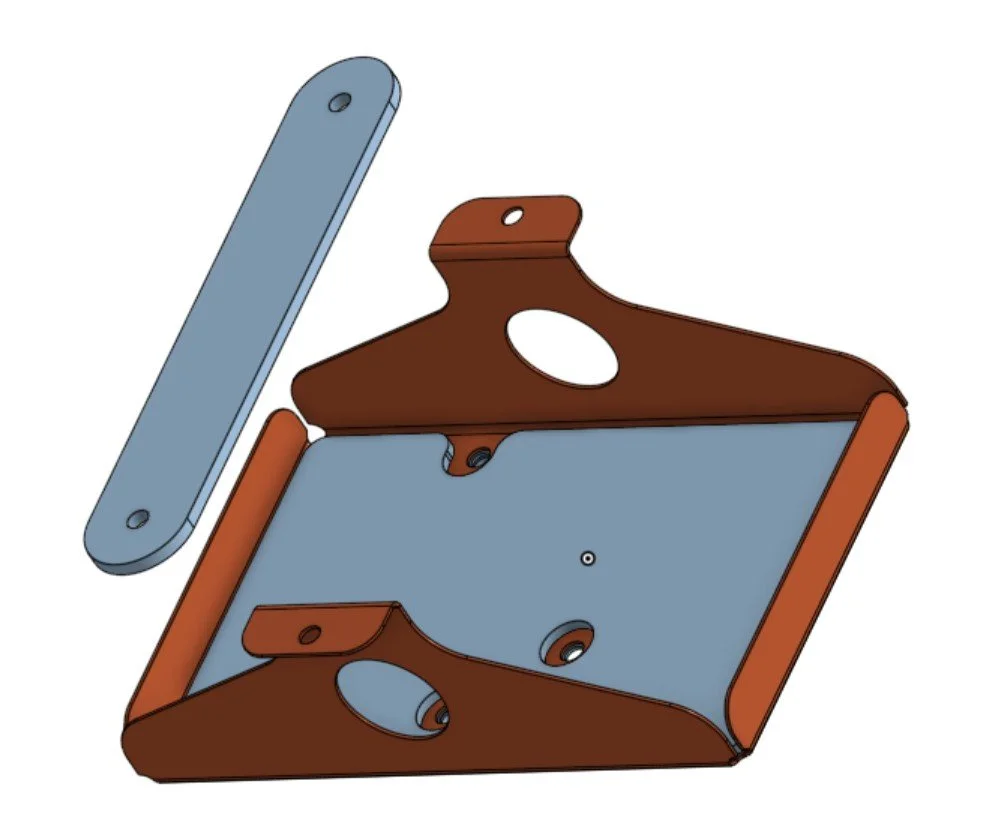

Layout

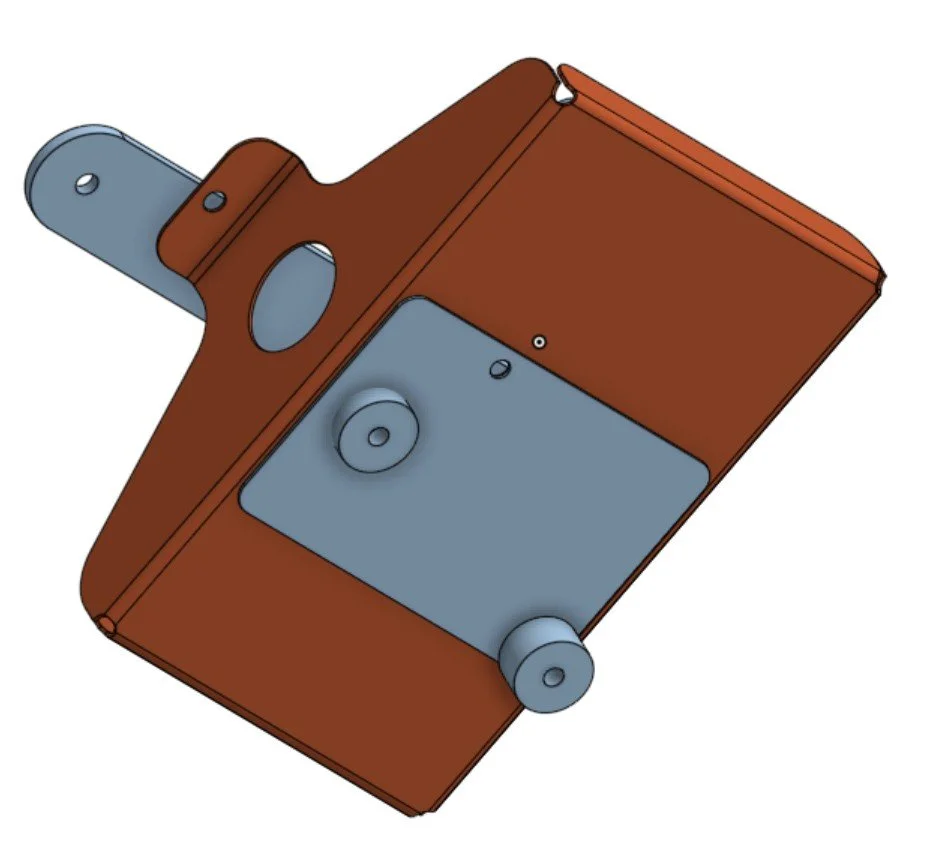

Layout showing spacers
