Installation guide

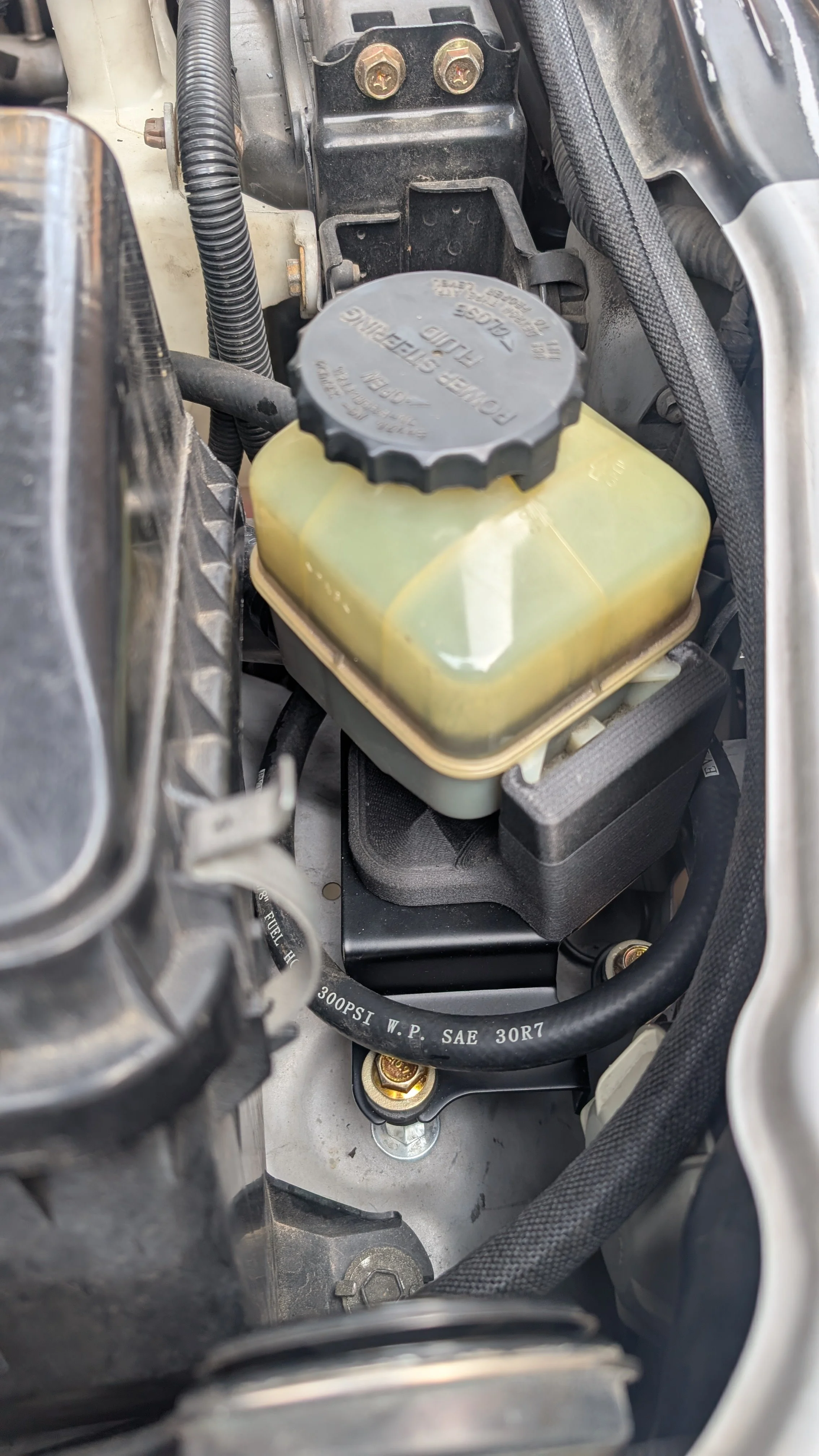

LEXUS / LAND CRUISER LX470 Power steering relocation
IMPORTANT: This installation guide is still in development
TOOLS:
You will need the following tools:
Wrench and Socket set (Handy to keep in the back of your Lexus)
Nutsert tool with nutserts - Needed to relocate components
Step drill - Needed to drill the holes for the nutsert

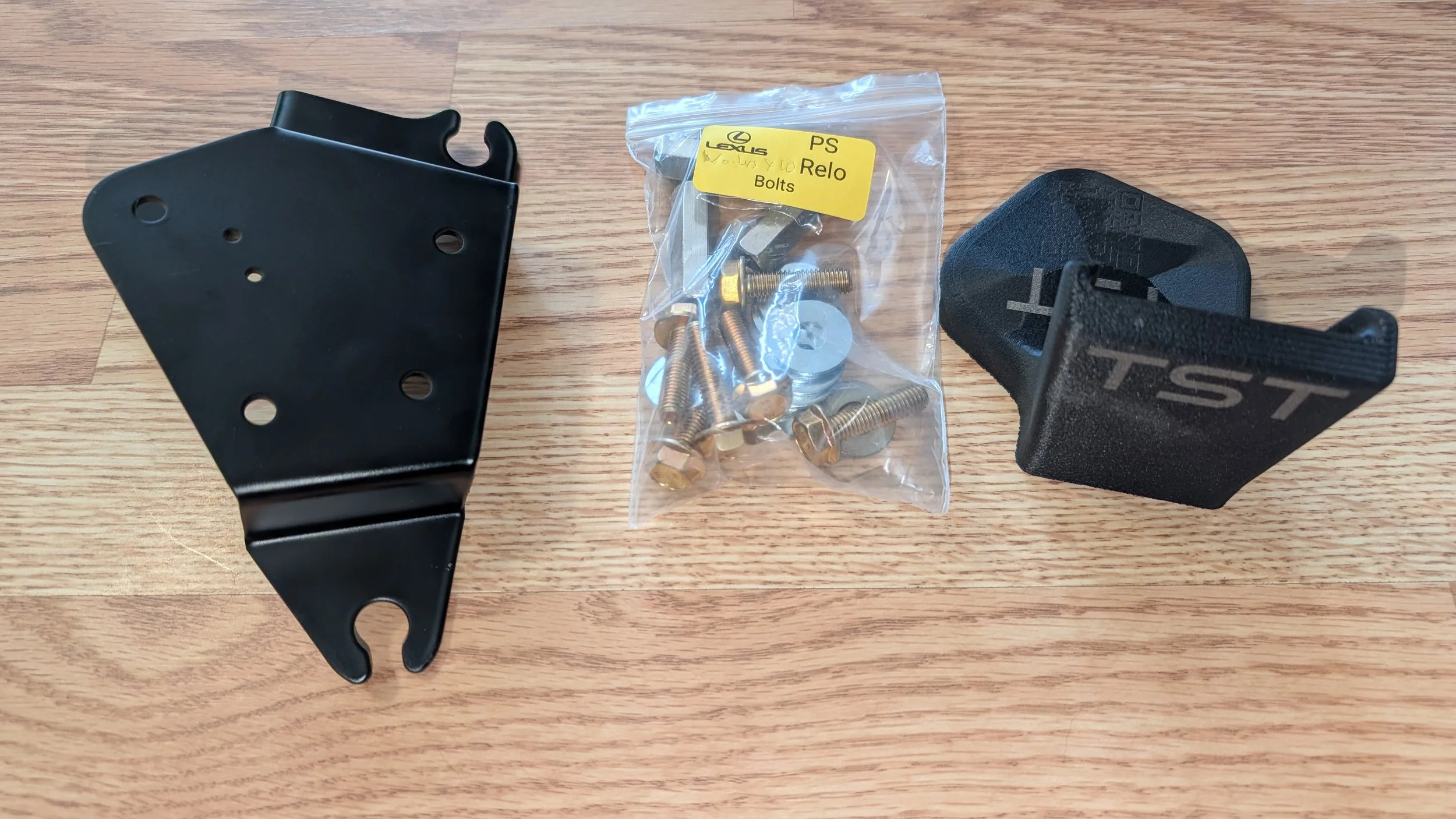

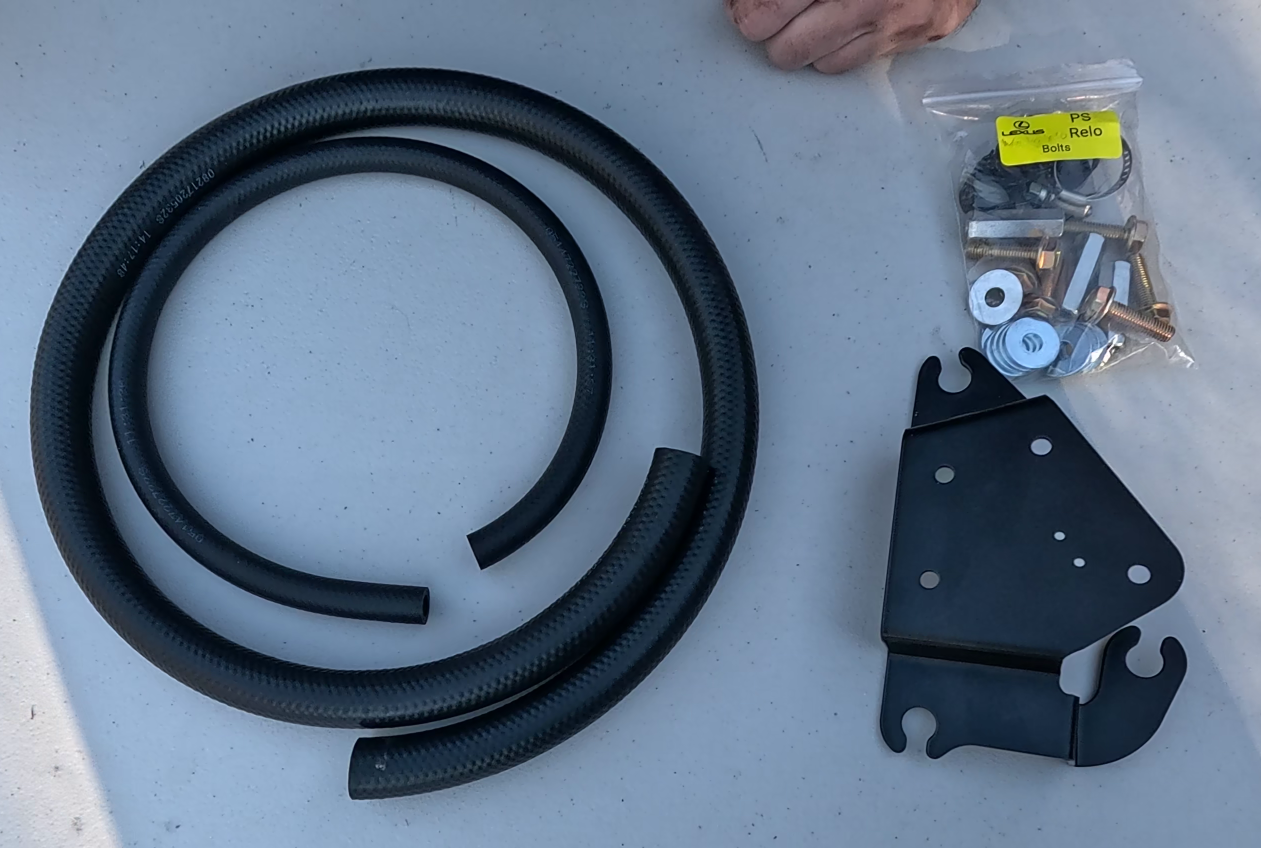

This kit contains:
Blue Sea mounting bracket
Spacer
M8 X 16 Bolt
M8 X 30 Bolt
M8 X 45 Bolt
M6 X 70 Bolt QTY2 of
@TheSHOP392
Install
@TheShop392 installed one of our prototype battery boxes - Lots of details with this installation
Battery Box
Battery Box Tie Down
Doubler plate
Battery Box Liner
Layout
Layout showing spacers
